RAIL surface-mounted luminaires
RAIL strip lighting, frameless
RAIL strip lighting, with frame
RAIL strip lighting
Thee RAIL luminaires are available either frameless or with a filigree, all-round-edge.
RAIL surface-mounted luminaire
Multifunctional luminaire with strict geometric shape, stripped to the bare essentials, for surface mounting on the ceiling. Despite its filigree design, this product is equipped with state-of-the-art lighting technology and electronics, making it a powerful and highly efficient package. Many special functions are possible and can be optimised for the project.
RAIL wall luminaire
The compact size makes this crisp-edged aluminium profile an inconspicuous architectural detail. The versatility of the lighting technology makes it universally useable, being equally suited for illuminating office and functional areas and for prestigious architecture. Many special functions are possible and can be optimised for the project.
Covers
The RAIL luminaires are covered with a full-surface clips profile made of opal acrylic or a prismatic polycarbonate cover suitable for DSE workstations. The profile covers are cut to the millimeter to order, the delivery dimensions can be freely selected up to a length of 6 m.
1) Acrylic diffuser, opal
with satin matt surface
2) Prismatic diffuser
with microprismatic surface
3) Prismatic diffuser, opal
same as 2), but with an additional opal diffuser
without illustration) Blind cover
made of aluminum in the same color as the housing
Dual Light
To provide scenic light, spotlight inserts are available. Highly diverse lighting moods can be created by using different light sources. Diffuse and pin-pointed light are combined as a double function in one luminaire. The even ambient light produced by the LED strip lighting is complemented by additional, independent switchable and controllable lighting.
Spotlight units
High vertical accenting is achieved by combining with modules accommodating rigid or adjustable spotlight units. Various spotlight inserts are available for supplementary lighting.
RAIL Mounting options
Various mounting options are available for installation purposes. Please see below for an overview of the most commonly used systems. Project specific solutions are also possible and are solved by our design team.
The plastered-in mounting allows the luminaire to be fully integrated into the building structure. To achieve a perfect result, the luminaires must be mounted and fitted with the utmost care. The expansion joint mentioned here is an absolute necessity.
As an alternative to the abovementioned flush-plastered mounting, the installation with shadow gap is also recommendable. A cleanly finished ceiling cut-out can be easily produced using precast plaster parts or plaster rails. Various concrete installation housings are also available for our strip lights.
Using individually precast, shaped plaster parts produces a unified appearance of the ceiling system and luminaire. The shaped plaster parts are designed to fit the luminaires to be installed, ensuring uncomplicated installation by the specialist fitters.
The variety of shapes is limitless, giving the designer every possibility to be creative. We are happyto provide support for the technical implementation and can name suppliers once the requirements have been fixed.
Wall-mounting the luminaire with wall bracket with predefined offset from wall. Fitting to the ceiling with joint. Ceiling finished with finishing profile.
Ceiling cut-out to be produced on-site by the ceiling builder. Ceiling finished with finishing profile
Ceiling cut-out produced very exactly onsite using solid ceiling plaster profiles
Air Conditioning Technology
In addition to the harmonious design styling, the combination of air conditioning and lighting technology also reduces installation time by reducing the ceiling cut-outs. System adaptors allow the integration of additional elements at the same time fulfilling various climatic demands. A spatial separation of individual technical elements guarantees highly efficient individual functions. Controllable integration of air input and output.
Sound
Wide band loudspeakers with 100 volt technology are available as a system element. A bayonet lock allows them to be integrated, aligned and reversed.
Fire Alarm Detectors
In principle conventional fire alarm detectors can also be integrated as a system element into LED RAIL profiles. To ensure conformity with the current German VDE guidelines, the possibility of integration must be checked in detail and must be confirmed by the fire alarm detector manufacturer with a certificate of compliance (German regulation for the German market).
Water Sprinkler
System adaptors allow the installation of a covering plate with 50mm cut out hole. Avoiding frictional connected luminaire the installation of suspended screen sprinklers and the supply of the sprinkler pipes can be realized. A certificate of compliance by the water sprinkler manufacturer is recommended.
Special Equipment
Besides the mentioned basic elements further technical elements can be integrated in addition to the indicated basic modules. These include: video monitors; alarm and sensor technology; revision elements for control valves and maintenance elements.
Safety Luminaires
Independent luminaire inserts with or without single batteries are integrated as system elements in a non-maintained circuit. A wide variety of wattages allows the emergency lighting units to be used as safety or secondary lighting.
Rescue Signs
Rescue signs can be integrated in continuous circuits or into reference luminaires by using optical lighting accessories. Easy revision of the additional elements allows usage of single batteries.
Guideposts
Beside emergency and mandatory signs, information and guidance signs can also be integrated in the lighting system.
Emergency Module
Specific components such as monitoring modules, AC/DC switching points, address modules and individual batteries can be integrated for the emergency lighting function.
Single battery with control LED

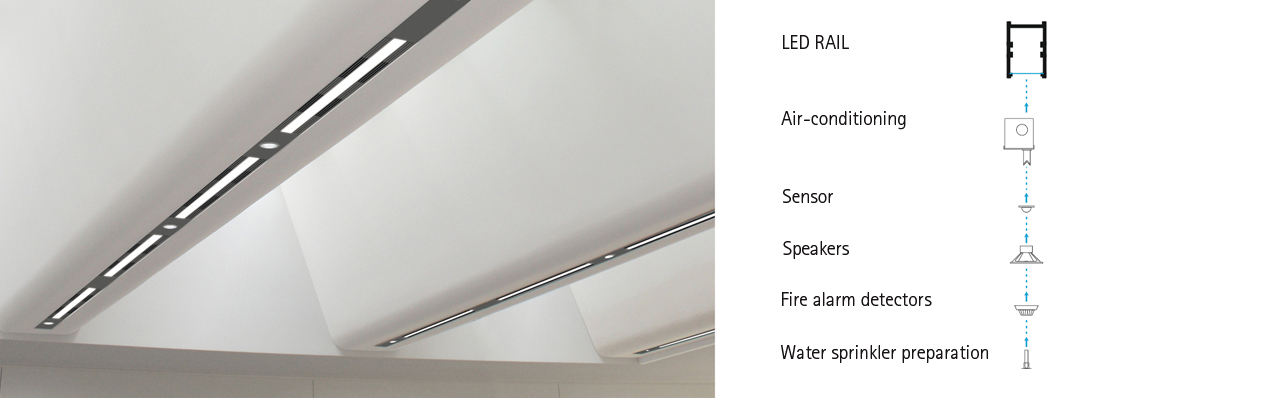

System luminaires
With RAIL system luminaires, system components are compiled according to project needs. This enables continuous light channel systems matched to the
architecture. The modular selection of system components enables lighting solutions according to the specific designs of the lighting designer. Detailed
planning of the system can be directly and simply implemented. Functional additions can also be subsequently installed with ease.
The LED RAIL light line features almost unlimited applications – it can be used for light guidance, as general lighting and for designing interiors. A variety of connection elements for the profiles enables wide design flexibility for the line layouts. Individual connector elements can be supplied on request.
Extensive installation and mounting options allow integration into highly diverse ceiling systems.
RAIL System connectors
With the RAIL system connectors, the lights can be connected to form complex light constructions.
